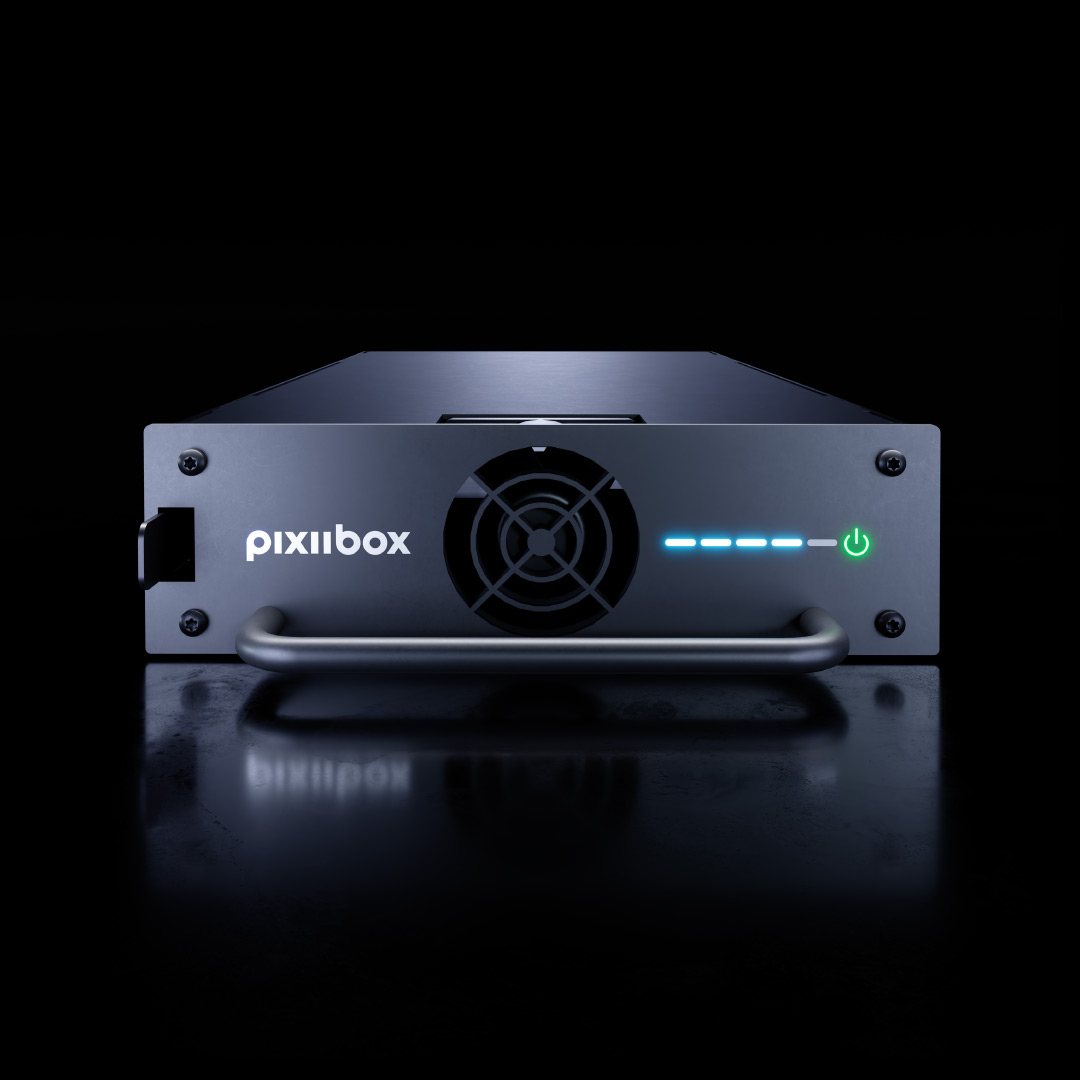

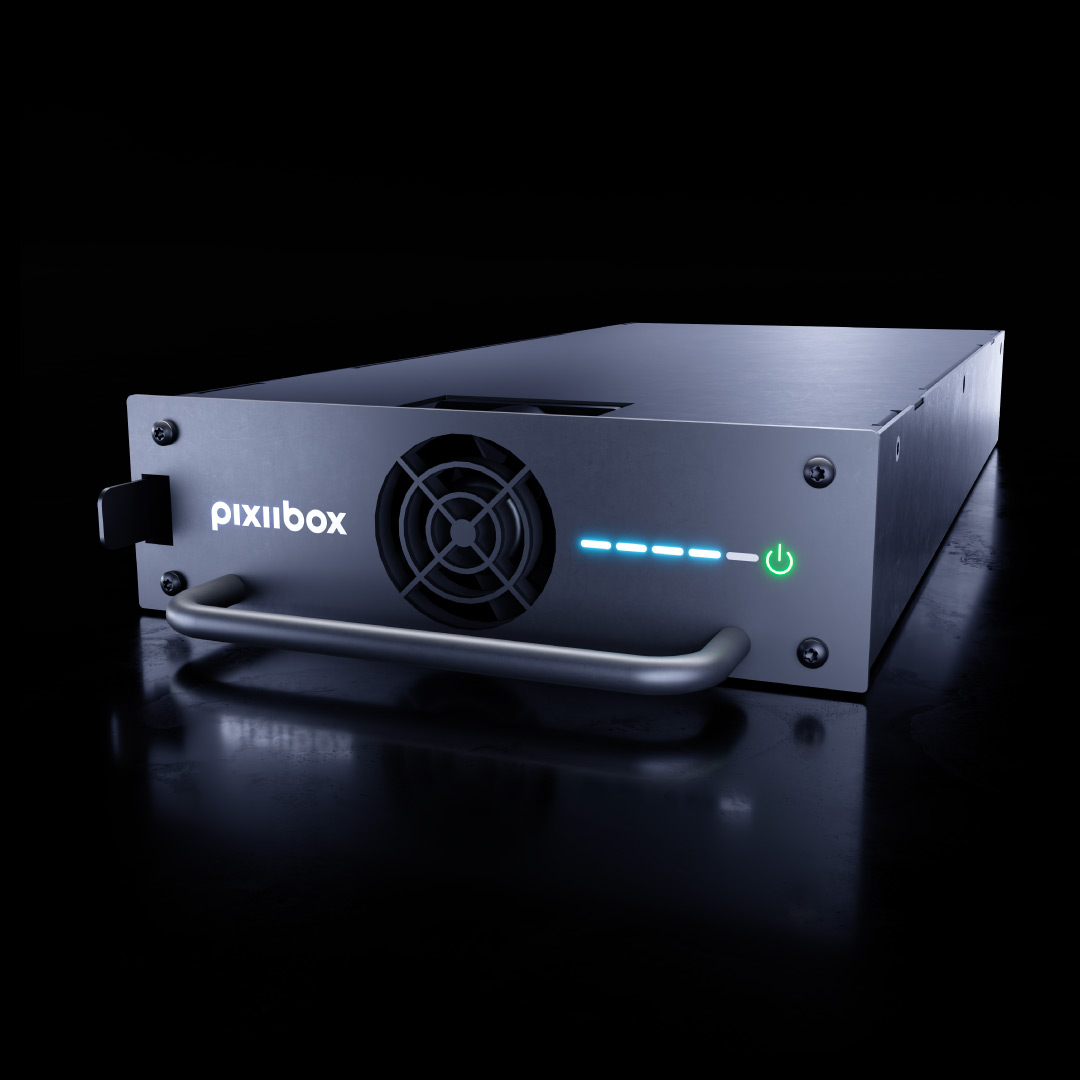

PixiiBox 48/3300
Bi-directional AC/DC converter
Configure your system
Output power:
kW
Select location and cooling:
Select battery:
50kW500kW1MW

Flexibility made simple

With growing complexity in the energy market, you need a software configurable battery energy storage system that is flexible and will adapt to your needs, ensuring you always get the most from your investment.

The PixiiBox is a bi-directional AC/DC power conversion module, allowing you to seamlessly scale both power conversion and energy storage capacity, with a range from 3 to 300kW. The systems can be connected in parallel to achieve additional total power and energy storage capacity. It´s bi-directional power architecture enables energy to flow in both directions, from grid to battery and battery to grid, making it compact, reliable, and cost effective.

It connects with a wide range of energy sources, like solar, grid, generator and more, giving you unrivalled flexibility.

  • Grid tied
  • Modular
  • Hot pluggable
  • Fast response
Phase balancing
Balance your three-phase load to provide utilization of your upstream distribution network, by feeding power from phases with low load – to phases with high load and thereby stabilizing the phase voltages.
Peak shaving
Reduce your demand charges and save costs by shaving the peaks of your power consumption.
General data
Power AC (bi-directional)
3.3 kW
Nominal AC voltage
230 Vac
Frequency
50 or 60 Hz
THDi
<5 %
Nominal DC voltage
48 Vdc
Peak efficiency (bi-directional)
96.5 %
Power factor control (lead/lag)
0.5
Maximum operating altitude
3000 m
Maximum operating temperature
65 °C (derating from 45 °C)
Minimum operating temperature
-20 °C
Maximum operating humidity
95 % RH
Weight
2 kg
Inverter mode / Input
Voltage range (nominal range)
44 – 59 Vdc Full load from 49 Vdc
Max current
71 A
Voltage range (according to set grid codes)
100 – 277 Vac Full load from 207 Vac
Max current
16.6 A
Application standards and specifications
Internal communication
CAN-bus
Safety
IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 62368-1, IEC/EN 60950-1
Grid
VDE-AR-N 4105, EN 50549-1, TR 3.3.1, AS/NZS 4777.2, EREC G99
EMC
IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
Environment
ETSI EN 300 019:2-2 (Class 2.3), ETSI EN 300 019:2-3 (Class 3.2)
Acoustic noise (@1m and 25 °C)
60 dBA
Protection AC port
Fuse (25 A), Mechanical relays with Basic isolation and anti-islanding
Protection DC port
Fuse (2 x 50 A), overvoltage shutdown, Short circuit protection, Hot plug-in inrush current limitation.
Dimensions (w – h – d)
Width 145 mm, Height 42 mm, Depth 339 mm
